Dirt Cheap EMP

Coming soon

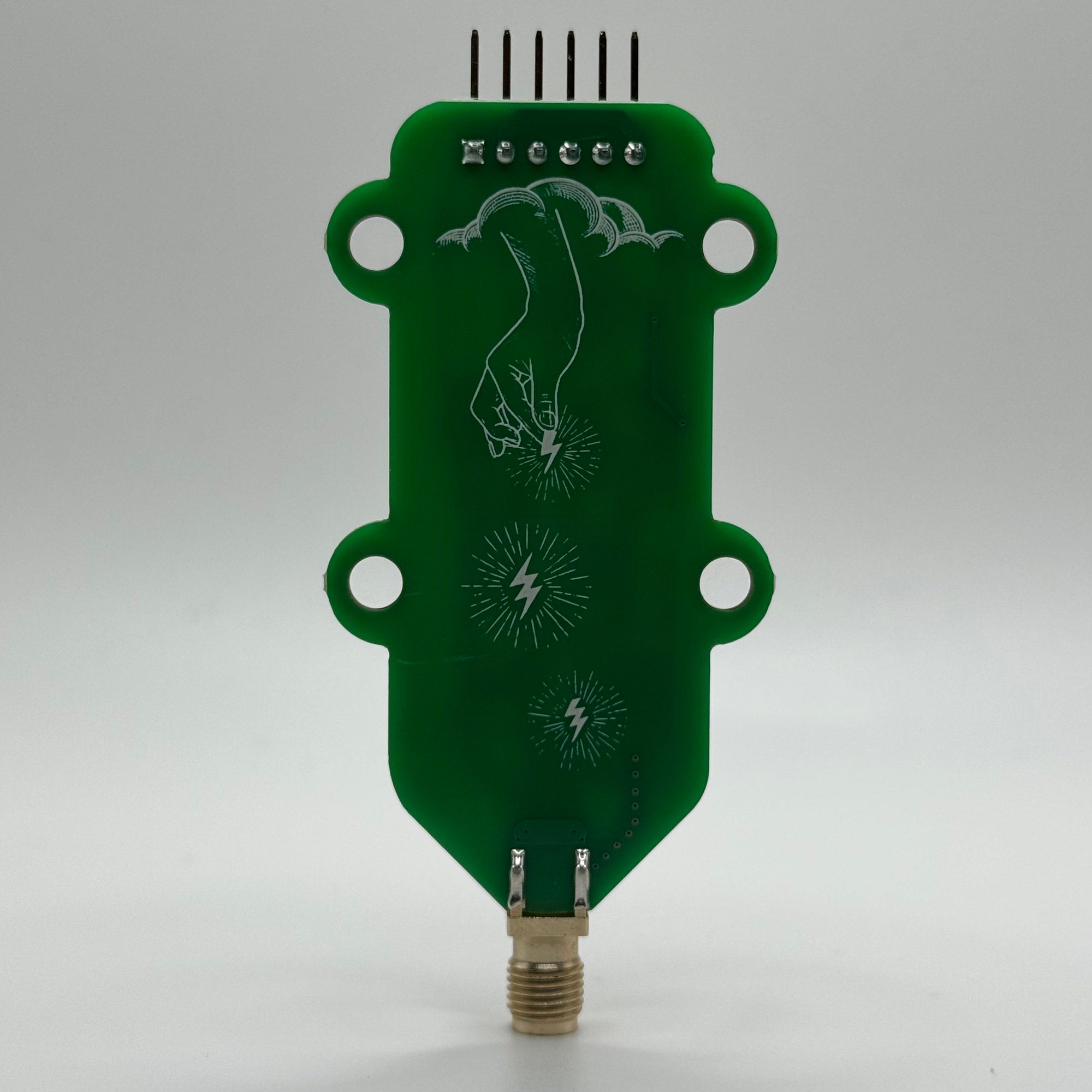

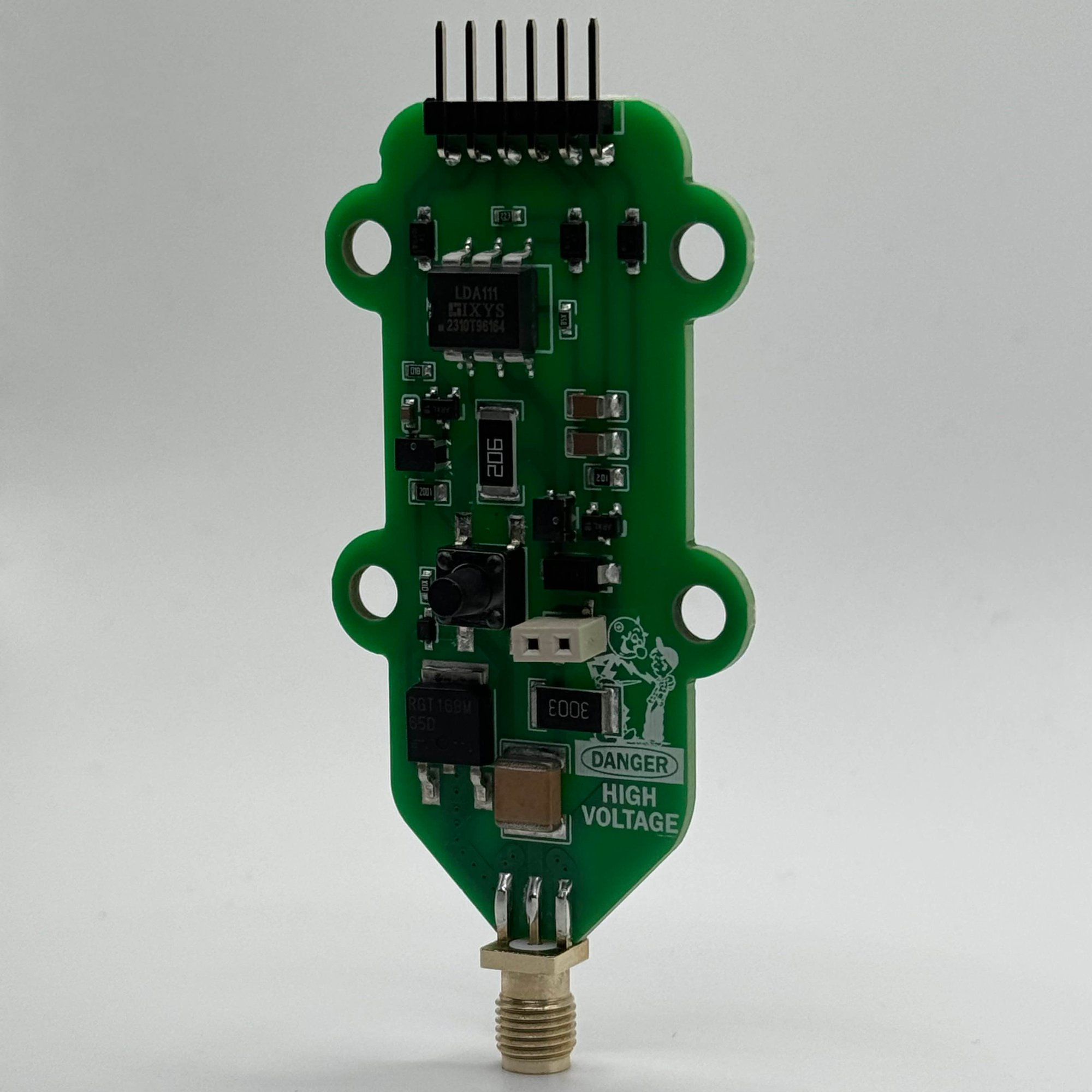

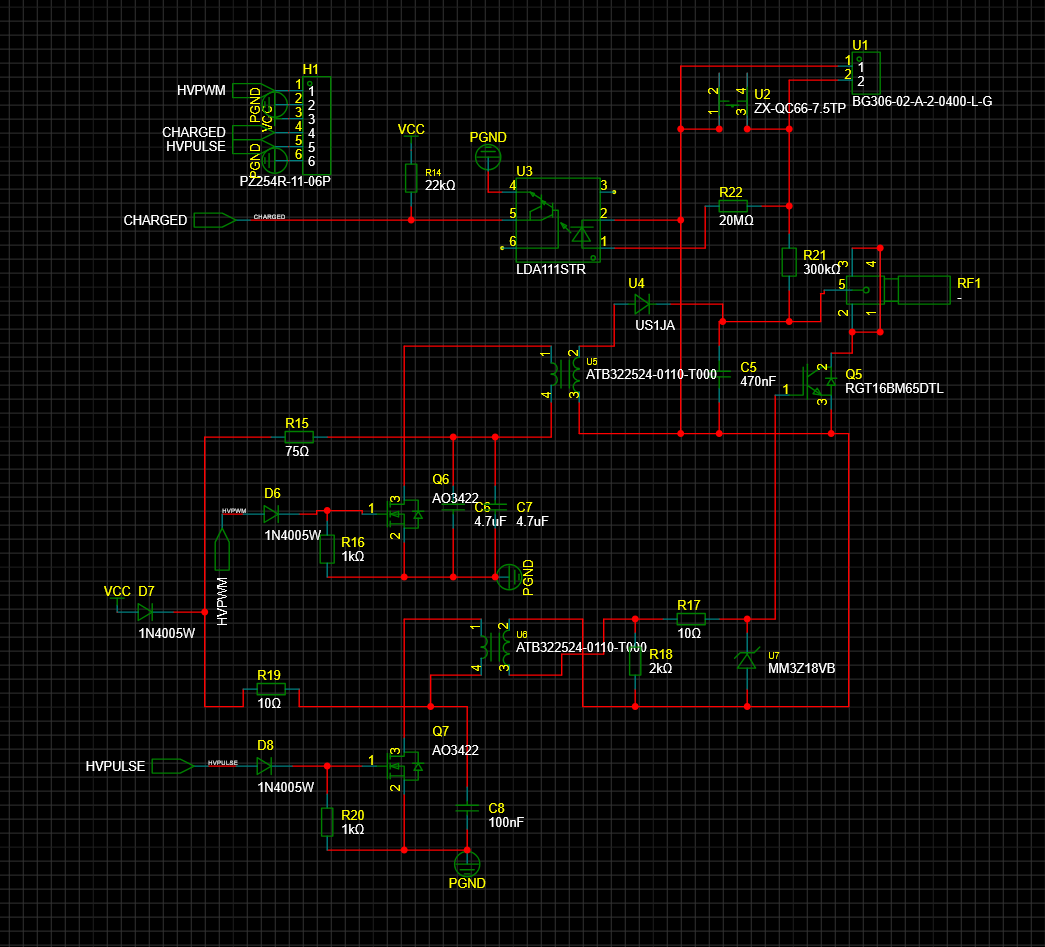

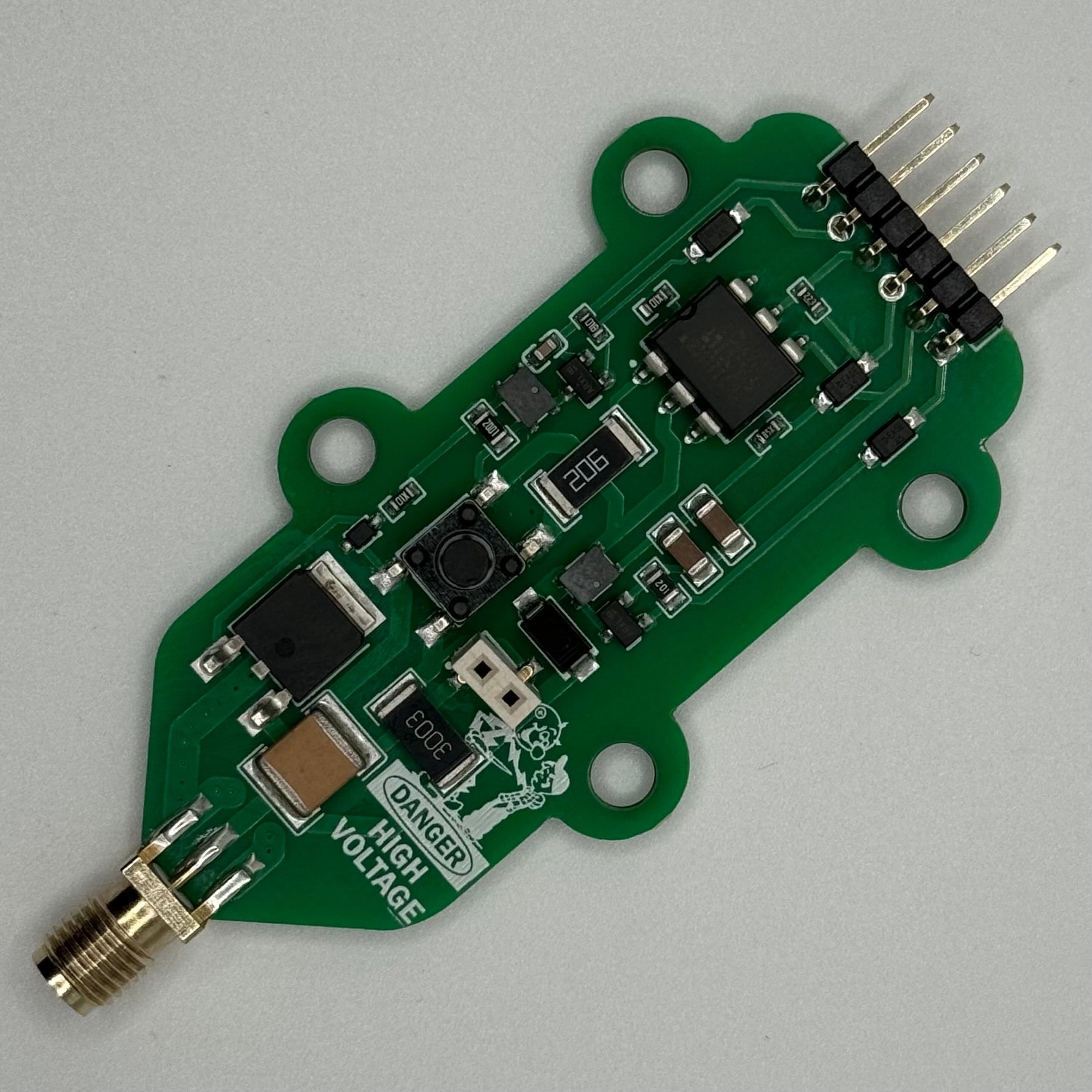

The Dirt Cheap EMP is an XYZ Stage-mountable Electromagnetic Fault Injection tool based on the High Voltage section of the ChipShouter-PicoEMP and FaultyCat.

Unlike other low-cost EMFI tools, the Dirt Cheap EMP features no controller and must be operated by an external fast-gpio capable device, such as a Raspberry Pi RP 2040/2350.

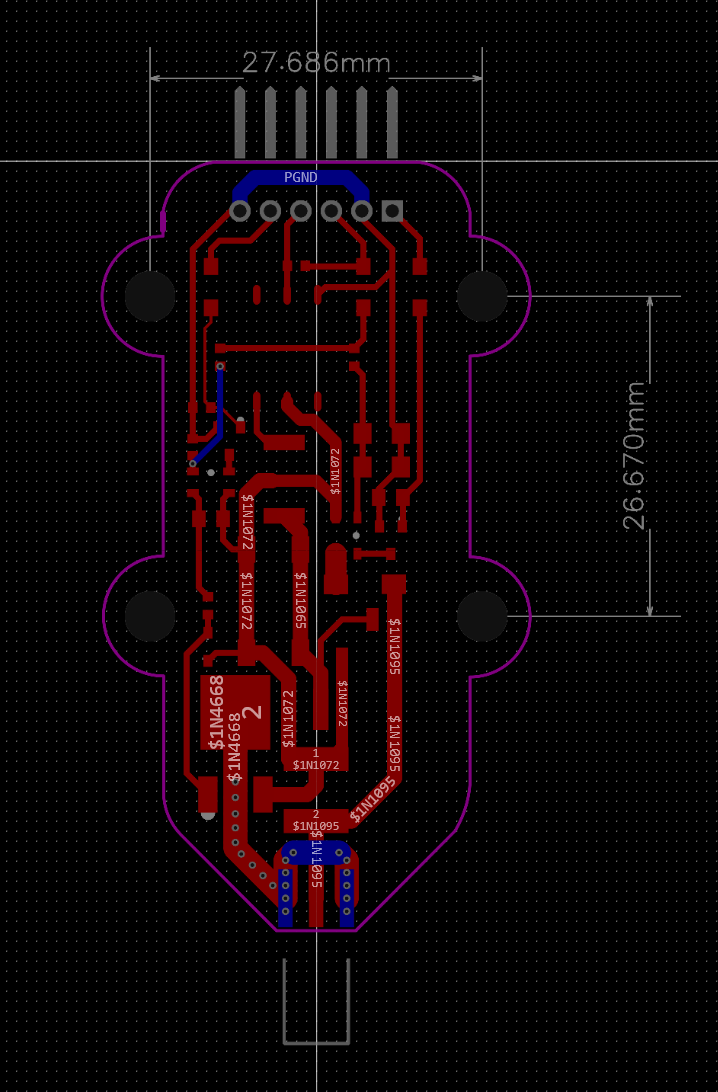

Mounting Holes: 3.1mm
Horizontal Center Distance: 27.7mm
Vertical Center Distance: 26.7mm

Documentation and more here.
